your new control panel is here.
Look no further.
.jpg "Economy Simplex Control Panel")

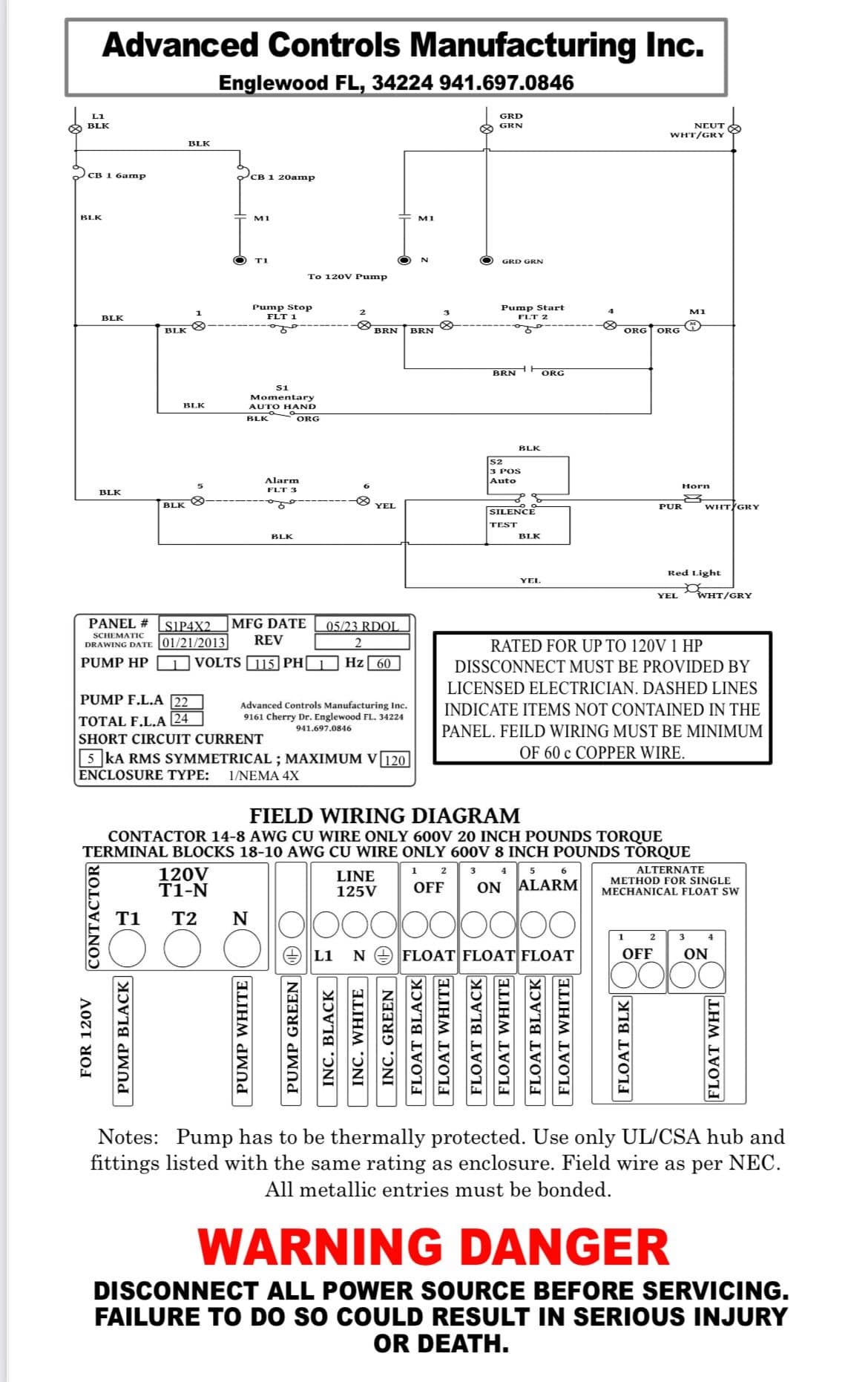

Economy Simplex Control Panel
Call Local Dealer For Pricing
DESCRIPTION: THIS ALARM CONTROL PANEL OFFERS A SEPERATE CIRCUIT FOR THE SUBMERSIBLE PUMP (20A) AND ALARM (10A). - THE ON/OFF FLOAT SWITCH MUST BE RATED FOR THE HP OF THE PUMP BEING INSTALLED. -FOR PUMPS UP TO 1 HP 120V.
SPECIAL FEATURES:DIMENSIONS:13 1/2" H x 10 1/8" W x 5 1/8" D120V, SINGLE PHASE, 20A MAX
STAINLESS STEEL LOCKABLE LATCHMOMENTARY PUMP SWITCH ALWAYS RETURNS TO AUTOALARM SWITCH - AUTO/SILENT/TESTON/OFF FLOAT SWITCH MUST BE MOTOR RATED (NOT INCLUDED)HIGH LIQUID ALARM FLOAT SWITCH (MAY BE ORDERED WITH OR WITHOUT)FOR USE WITH SINGLE PHASE THERMALLY PROTECTED MOTORSNO JUMPER WIRES NEEDED
.jpg "Simplex Control Panel")

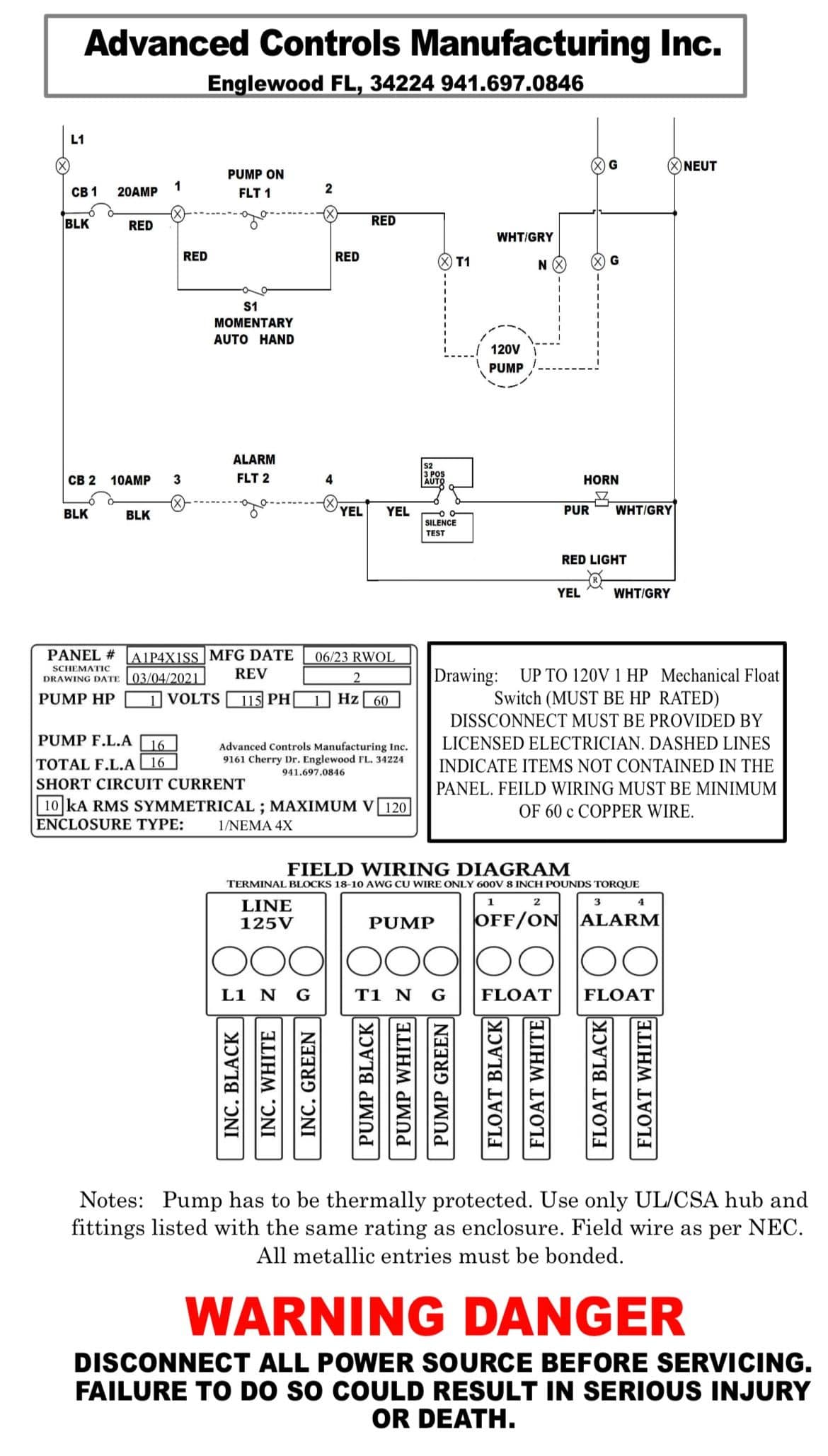

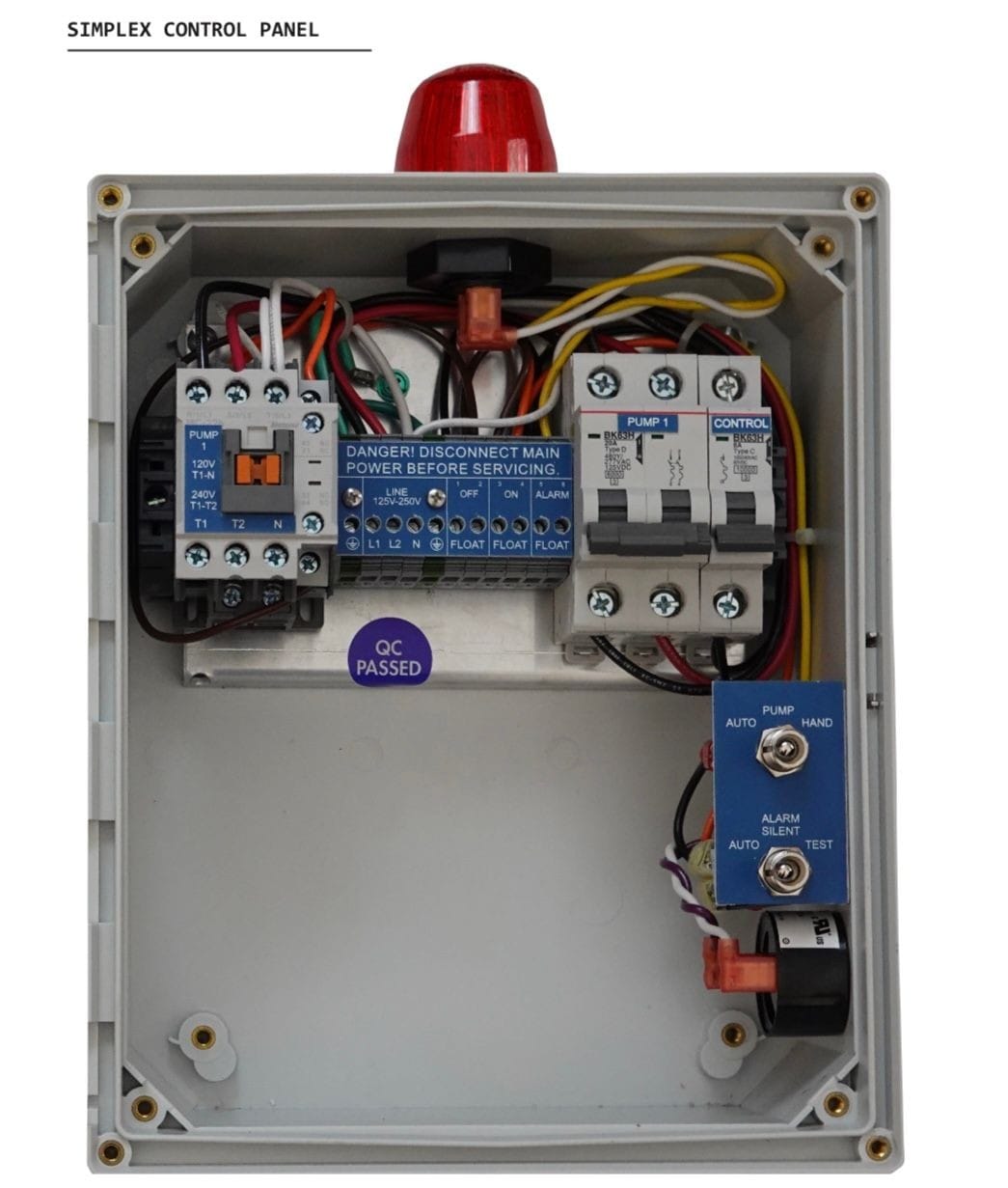

Simplex Control Panel
Call Local Dealer For Pricing
DESCRIPTION: THIS SIMPLEX CONTROL PANEL OFFERS A SEPERATE CIRCUIT FOR THE SUBMERSIBLE PUMPS WITH CONNECTIONS FOR 120V 1 HP (20A) OR 240V 2 HP (20A) AND A 10A ALARM CIRCUIT. TWO SEPERATE FLOAT CONNECTIONS OPERATE THE LIQUID LEVELS (OFF AND ON) WITH A THIRD FLOAT FOR HIGH LIQUID ALARM LEVEL. (INTERNALLY WEIGHTED FLOATS-30 FT MERCURY)
SPECIAL FEATURES:DIMENSIONS: 13 1/2' H x 10 1/8" W x 5 1/8' D120V OR 240V, SINGLE PHASE, 20A MAX
STAINLESS STEEL LOCKABLE LATCHMOMENTARY PUMP SWITCH ALWAYS RETURNS TO AUTO - CANNOT BE LEFT ONALARM SWITCH - AUTO/SILENT/TEST (ALWAYS IN ONE FUNCTION)MAY BE ORDERED WITH OR WITHOUT THREE FLOAT SWITCHESFOR USE WITH SINGLE PHASE THERMALLY PROTECTED MOTORSCONTACTOR RATED 0-22 FULL LOAD AMPS
.jpg "Duplex Control Panel")

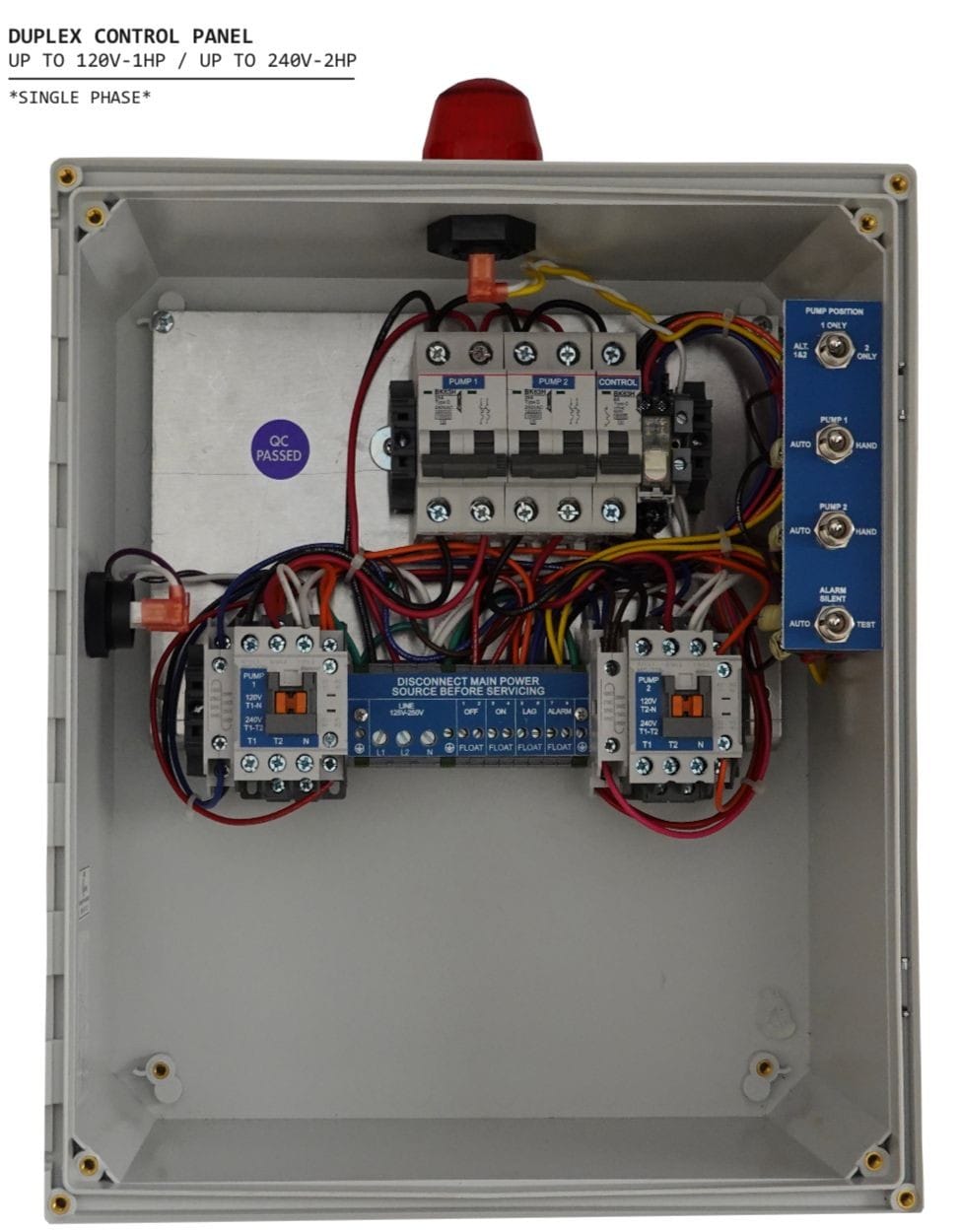

Duplex Control Panel
Call Local Dealer For Pricing
DESCRIPTION:
-ALTERNATING DUPLEX CONTROL PANEL 120V-240V SINGLE PHASE-FOR PUMPS WITH UP TO 2HP THEMALLY PROTECTED MOTORS -CONTACTOR MOTOR RATING 0-22 FL -TWO STAINLESS STEEL LOCKABLE LATCHES-3 POSITION SELECTOR SWITCH: ALTERNATE PUMPS, PUMP 1 ONLY, PUMP 2 ONLY-INCLUDES ALARM TEST POSITION-AUTO TOGGLE SWITCH- PUMP AUTO/MOMENTARY HAND-ALARM AUTO/SILENT/TEST (MOMENTARY HAND)-FIELD WIRING OVER TERMINAL STRIPS FOR EASY CONNECTIONS-25 AMP CIRCUIT BREAKERS FOR EACH PUMP-10 AMP CONTROL/ALARM CIRCUIT BREAKER-COLOR CODED WIRING SPECIAL FEATURES:-DIMENSIONS: 17 5/8”H x 14 1/8”W x 8” D-HIGH QUALITY POLYCARBONATE ENCLOSURE – RATED FOR OUTDOOR USE (NEMA 4X), UL 508A LISTED-CONNECTIONS FOR 120V OR 240V (NO JUMPER WIRE NEEDED)-(3) MERCURY FLOATS WITH 30 FT CORD (WITH INTERNAL WEIGHT)-360 DEGREE RED ALARM LIGHT, HIGH DECIBEL AUDIBLE BUZZER (100 DB)
-ALTERNATING DUPLEX CONTROL PANEL 120V-240V SINGLE PHASE-FOR PUMPS WITH UP TO 2HP THEMALLY PROTECTED MOTORS -CONTACTOR MOTOR RATING 0-22 FL -TWO STAINLESS STEEL LOCKABLE LATCHES-3 POSITION SELECTOR SWITCH: ALTERNATE PUMPS, PUMP 1 ONLY, PUMP 2 ONLY-INCLUDES ALARM TEST POSITION-AUTO TOGGLE SWITCH- PUMP AUTO/MOMENTARY HAND-ALARM AUTO/SILENT/TEST (MOMENTARY HAND)-FIELD WIRING OVER TERMINAL STRIPS FOR EASY CONNECTIONS-25 AMP CIRCUIT BREAKERS FOR EACH PUMP-10 AMP CONTROL/ALARM CIRCUIT BREAKER-COLOR CODED WIRING SPECIAL FEATURES:-DIMENSIONS: 17 5/8”H x 14 1/8”W x 8” D-HIGH QUALITY POLYCARBONATE ENCLOSURE – RATED FOR OUTDOOR USE (NEMA 4X), UL 508A LISTED-CONNECTIONS FOR 120V OR 240V (NO JUMPER WIRE NEEDED)-(3) MERCURY FLOATS WITH 30 FT CORD (WITH INTERNAL WEIGHT)-360 DEGREE RED ALARM LIGHT, HIGH DECIBEL AUDIBLE BUZZER (100 DB)
SIMPLEX CONTROL PANEL TIME DOSAGE ATU/DRIP SYSTEM (ACCOMODATES NORWECO CONTROLLER, WHICH CAN BE MOUNTED INSIDE LEFT DOOR PANEL) PANEL PART # #ATSTDSRN1P4X1 508 UL LISTED IN U.S. AND CANADA
CALL LOCAL DEALER FOR PRICING
PART #ATSTDSRN1P4X1DESCRIPTION:-COMES WITH A 15 AMP CIRCUIT BREAKER FOR ATU PUMP (PUMP NOT INCLUDED)-COMES WITH A 20AMP BREAKER FOR 120V/24VAC EFFLUENT SEWAGE PUMP FOR ½ HP SUBMERSIBLE MOTOR (MOTOR NOT INCLUDED)-10 AMP BREAKER 120V CONTROL CIRCUIT, AND THE 120V/24VAC TRANSFORMER WITH A 3 AMP FUSE FOR THE OPERATION OF THE FILTER FLUSH/FIELD FLUSH SOLENIOD VALVES.-FOR DRIP SYSTEM ONLY WITH INSTALLATION SPACE FOR NORWECO CONTROLLER
PLC PARAMETERS• B001- [ON DELAY] T= 2 MIN• B002- [ASYNCHRONOUS PULSE GENERATOR] PULSE WITH (TH)= 12 MIN. ON / INTERPULSE WIDTH (TL)= 2 HR OFF• B004- [OFF DELAY] T= 1 MIN.• B006- [OFF DELAY] T= 2 MIN.• B009- [ASYNCHRONOUS PULSE GENERATOR] PULSE WIDTH (TH)= 23 HR ON/ INTERPULSE WIDTH (TL)= 1 HR OFF• B010- [OFF DELAY] T= 1 MIN.• B012- [UP/DOWN COUNTER] COMMENT- ON= 84 PUMP COUNTS• B014- [OFF DELAY] T= 0 MIN COMMENT- 2 MIN• B017- [OPERATING HOURS COUNTER] COMMENT- PUMP RUNTIME HOURS= OT• B018- [UP/DOWN COUNTER] COMMENT- PUMP START COUNTS= CNT• B020- [UP/DOWN COUNTER] COMMENT- TIMER RESET COUNTS= CNT• B021- [UP/DOWN COUNTER] COMMENT- HAND SWITCH COUNTS= CNT• B022- [ASYNCHRONOUS PULSE GENERATOR] PULSE WIDTH (TH)= 12 MIN ON/ INTERPULSE WIDTH (TL)= 1 HR OFF
SPECIAL FEATURES:-DIMENSIONS: 17 5/8”H x 14 1/8”W x 8” D-HIGH QUALITY POLYCARBONATE ENCLOSURE – RATED FOR OUTDOOR USE (NEMA 4X), UL 508A LISTED-CONNECTIONS FOR 120V/24VAC (NO JUMPER WIRE NEEDED)-360 DEGREE RED ALARM LIGHT, HIGH DECIBEL AUDIBLE BUZZER (100 DB)
SPECIAL FEATURES:-DIMENSIONS: 17 5/8”H x 14 1/8”W x 8” D-HIGH QUALITY POLYCARBONATE ENCLOSURE – RATED FOR OUTDOOR USE (NEMA 4X), UL 508A LISTED-CONNECTIONS FOR 120V/24VAC (NO JUMPER WIRE NEEDED)-360 DEGREE RED ALARM LIGHT, HIGH DECIBEL AUDIBLE BUZZER (100 DB)
SIMPLEX CONTROL PANEL FOR USE WITH ATU DRIP SYSTEM (WITH INTERNAL AIR SWITCH) PANEL PART # ATSTDSRFD1P4X1 508 UL LISTED IN U.S. AND CANADA
CALL LOCAL DEALER FOR PRICING
PANEL PART # ATSTDSRFD1P4X1DESCRIPTION:-COMES WITH A 15 AMP CIRCUIT BREAK FOR ATU PUMP (PUMP NOT INCLUDED)-COMES WITH A 20AMP BREAKER FOR 120V/24VAC EFFLUENT SEWAGE PUMP FOR ½ HP SUBMERSIBLE MOTOR (PUMP NOT INCLUDED)
-10 AMP BREAKER 120V CONTROL CIRCUIT, AND THE 120V/24VAC TRANSFORMER WITH A 3 AMP FUSE FOR THE OPERATION OF THE FILTER FLUSH/FIELD FLUSH SOLENIOD VALVES.- ATU TIME DOSAGE SYSTEM WITH AIRSWITCH AND HIGH WATER ALARM ATU AIR PUMP (ATU AIR PUMP AND FLOAT SWITCH NOT INCLUDED)
PLC PARAMETERS• B001- [ON DELAY] T= 2 MIN• B002- [ASYNCHRONOUS PULSE GENERATOR] PULSE WITH (TH)= 12 MIN. ON / INTERPULSE WIDTH (TL)= 2 HR OFF• B004- [OFF DELAY] T= 1 MIN.• B006- [OFF DELAY] T= 2 MIN.• B009- [ASYNCHRONOUS PULSE GENERATOR] PULSE WIDTH (TH)= 23 HR ON/ INTERPULSE WIDTH (TL)= 1 HR OFF• B010- [OFF DELAY] T= 1 MIN.• B012- [UP/DOWN COUNTER] COMMENT- ON= 84 PUMP COUNTS• B014- [OFF DELAY] T= 0 MIN COMMENT- 2 MIN• B017- [OPERATING HOURS COUNTER] COMMENT- PUMP RUNTIME HOURS= OT• B018- [UP/DOWN COUNTER] COMMENT- PUMP START COUNTS= CNT• B020- [UP/DOWN COUNTER] COMMENT- TIMER RESET COUNTS= CNT• B021- [UP/DOWN COUNTER] COMMENT- HAND SWITCH COUNTS= CNT• B022- [ASYNCHRONOUS PULSE GENERATOR] PULSE WIDTH (TH)= 12 MIN ON/ INTERPULSE WIDTH (TL)= 1 HR OFF
SPECIAL FEATURES:-DIMENSIONS: 17 5/8”H x 14 1/8”W x 8” D-HIGH QUALITY POLYCARBONATE ENCLOSURE – RATED FOR OUTDOOR USE (NEMA 4X), UL 508A LISTED-CONNECTIONS FOR 120V/24VAC (NO JUMPER WIRE NEEDED)-360 DEGREE RED ALARM LIGHT, HIGH DECIBEL AUDIBLE BUZZER (100 DB)-INCLUDES GREEN LED ALARM LIGHTSGREEN LED ALARM KEY ALERTS: 1. ATU AIR PUMP ALARM2. ATU TANK HIGH WATER ALARM3. LIFT STATION HIGH WATER ALARM
SPECIAL FEATURES:-DIMENSIONS: 17 5/8”H x 14 1/8”W x 8” D-HIGH QUALITY POLYCARBONATE ENCLOSURE – RATED FOR OUTDOOR USE (NEMA 4X), UL 508A LISTED-CONNECTIONS FOR 120V/24VAC (NO JUMPER WIRE NEEDED)-360 DEGREE RED ALARM LIGHT, HIGH DECIBEL AUDIBLE BUZZER (100 DB)-INCLUDES GREEN LED ALARM LIGHTSGREEN LED ALARM KEY ALERTS: 1. ATU AIR PUMP ALARM2. ATU TANK HIGH WATER ALARM3. LIFT STATION HIGH WATER ALARM
SIMPLEX CONTROL PANEL
(WITH EXTERNAL AIR SWITCH)
PANEL PART # ATSTDSRFD1P4X1 508 UL LISTED IN U.S. AND CANADA
CALL FOR DEALER PRICING
PART# ATSTDSRFD1P4X1
DESCRIPTION:-COMES WITH A 15 AMP CIRCUIT BREAK FOR ATU PUMP (PUMP NOT INCLUDED)-COMES WITH A 20AMP BREAKER FOR 120V/24VAC EFFLUENT SEWAGE PUMP FOR ½ HP SUBMERSIBLE MOTOR (NOT INCLUDED) 10 AMP BREAKER 120V CONTROL CIRCUIT, AND THE 120V/24VAC TRANSFORMER WITH A 3 AMP FUSE FOR THE OPERATION OF THE FILTER FLUSH/FIELD FLUSH SOLENIOD VALVES.- ATU TIME DOSAGE SYSTEM WITH AIRSWITCH AND ATU AIR PUMP (ATU AIR PUMP NOT INCLUDED)
PLC PARAMETERS• B001- [ON DELAY] T= 2 MIN• B002- [ASYNCHRONOUS PULSE GENERATOR] PULSE WITH (TH)= 12 MIN. ON / INTERPULSE WIDTH (TL)= 2 HR OFF• B004- [OFF DELAY] T= 1 MIN.• B006- [OFF DELAY] T= 2 MIN.• B009- [ASYNCHRONOUS PULSE GENERATOR] PULSE WIDTH (TH)= 23 HR ON/ INTERPULSE WIDTH (TL)= 1 HR OFF• B010- [OFF DELAY] T= 1 MIN.• B012- [UP/DOWN COUNTER] COMMENT- ON= 84 PUMP COUNTS• B014- [OFF DELAY] T= 0 MIN COMMENT- 2 MIN• B017- [OPERATING HOURS COUNTER] COMMENT- PUMP RUNTIME HOURS= OT• B018- [UP/DOWN COUNTER] COMMENT- PUMP START COUNTS= CNT• B020- [UP/DOWN COUNTER] COMMENT- TIMER RESET COUNTS= CNT• B021- [UP/DOWN COUNTER] COMMENT- HAND SWITCH COUNTS= CNT• B022- [ASYNCHRONOUS PULSE GENERATOR] PULSE WIDTH (TH)= 12 MIN ON/ INTERPULSE WIDTH (TL)= 1 HR OFF
SPECIAL FEATURES:-DIMENSIONS: 17 5/8”H x 14 1/8”W x 8” D-HIGH QUALITY POLYCARBONATE ENCLOSURE – RATED FOR OUTDOOR USE (NEMA 4X), UL 508A LISTED-CONNECTIONS FOR 120V/24VAC (NO JUMPER WIRE NEEDED)-360 DEGREE RED ALARM LIGHT, HIGH DECIBEL AUDIBLE BUZZER (100 DB)-INCLUDES GREEN LED ALARM LIGHTSGREEN LED ALARM KEY ALERTS: 1. ATU AIR PUMP ALARM2. ATU TANK HIGH WATER ALARM3. LIFT STATION HIGH WATER ALARM
SPECIAL FEATURES:-DIMENSIONS: 17 5/8”H x 14 1/8”W x 8” D-HIGH QUALITY POLYCARBONATE ENCLOSURE – RATED FOR OUTDOOR USE (NEMA 4X), UL 508A LISTED-CONNECTIONS FOR 120V/24VAC (NO JUMPER WIRE NEEDED)-360 DEGREE RED ALARM LIGHT, HIGH DECIBEL AUDIBLE BUZZER (100 DB)-INCLUDES GREEN LED ALARM LIGHTSGREEN LED ALARM KEY ALERTS: 1. ATU AIR PUMP ALARM2. ATU TANK HIGH WATER ALARM3. LIFT STATION HIGH WATER ALARM
SIMPLEX TIMED DOSAGE DRIP SYSTEM WITH SMART RELAY PANEL PART# STDSRD1P4X1 508 UL LISTED IN U.S. AND CANADA
CALL FOR DEALER PRICING
PART# STDSRD1P4X1
DESCRIPTION:-COMES WITH A 20AMP CIRCUIT BREAKER FOR 120V/24VAC EFFLUENT SEWAGE PUMP FOR ½ HP SUBMERSIBLE MOTOR (MOTOR NOT INCLUDED)--10 AMP BREAKER 120V CONTROL CIRCUIT, AND THE 120V/24VAC TRANSFORMER WITH A 3 AMP FUSE FOR THE OPERATION OF THE FILTER FLUSH/FIELD FLUSH SOLENIOD VALVES.-FOR DRIP SYSTEM ONLY FROM AN EXISTING ATU UNIT
PLC PARAMETERS• B001- [ON DELAY] T= 2 MIN• B002- [ASYNCHRONOUS PULSE GENERATOR] PULSE WITH (TH)= 12 MIN. ON / INTERPULSE WIDTH (TL)= 2 HR OFF• B004- [OFF DELAY] T= 1 MIN.• B006- [OFF DELAY] T= 2 MIN.• B009- [ASYNCHRONOUS PULSE GENERATOR] PULSE WIDTH (TH)= 23 HR ON/ INTERPULSE WIDTH (TL)= 1 HR OFF• B010- [OFF DELAY] T= 1 MIN.• B012- [UP/DOWN COUNTER] COMMENT- ON= 84 PUMP COUNTS• B014- [OFF DELAY] T= 0 MIN COMMENT- 2 MIN• B017- [OPERATING HOURS COUNTER] COMMENT- PUMP RUNTIME HOURS= OT• B018- [UP/DOWN COUNTER] COMMENT- PUMP START COUNTS= CNT• B020- [UP/DOWN COUNTER] COMMENT- TIMER RESET COUNTS= CNT• B021- [UP/DOWN COUNTER] COMMENT- HAND SWITCH COUNTS= CNT• B022- [ASYNCHRONOUS PULSE GENERATOR] PULSE WIDTH (TH)= 12 MIN ON/ INTERPULSE WIDTH (TL)= 1 HR OFF
SPECIAL FEATURES:-DIMENSIONS: 17 5/8”H x 14 1/8”W x 8” D-HIGH QUALITY POLYCARBONATE ENCLOSURE – RATED FOR OUTDOOR USE (NEMA 4X), UL 508A LISTED-CONNECTIONS FOR 120V/24VAC (NO JUMPER WIRE NEEDED)-360 DEGREE RED ALARM LIGHT, HIGH DECIBEL AUDIBLE BUZZER (100 DB)
SPECIAL FEATURES:-DIMENSIONS: 17 5/8”H x 14 1/8”W x 8” D-HIGH QUALITY POLYCARBONATE ENCLOSURE – RATED FOR OUTDOOR USE (NEMA 4X), UL 508A LISTED-CONNECTIONS FOR 120V/24VAC (NO JUMPER WIRE NEEDED)-360 DEGREE RED ALARM LIGHT, HIGH DECIBEL AUDIBLE BUZZER (100 DB)
